€3,613,021.00Original price was: €3,613,021.00.€1,672,691.00Current price is: €1,672,691.00.

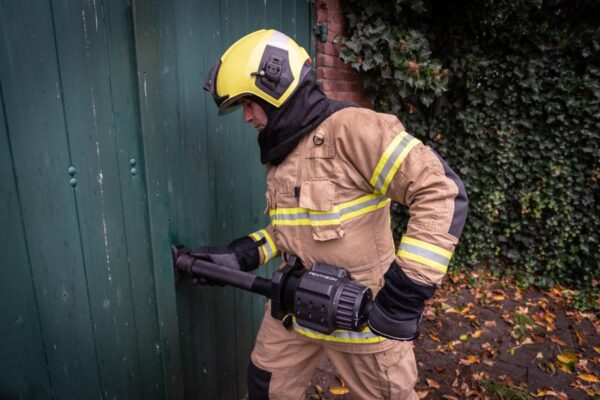

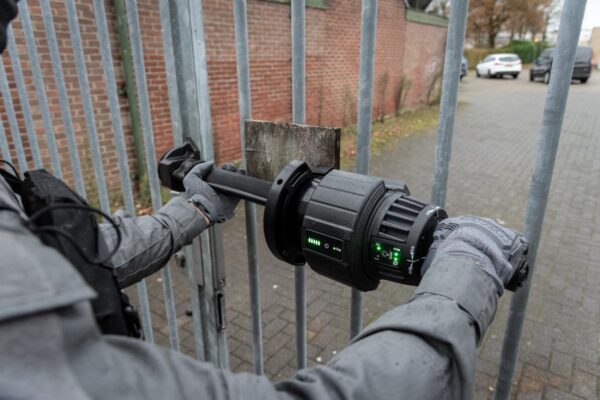

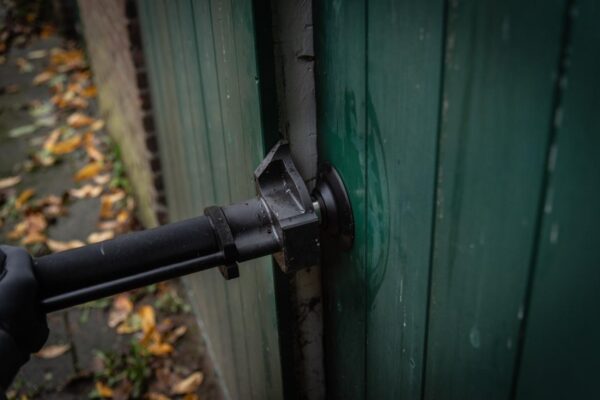

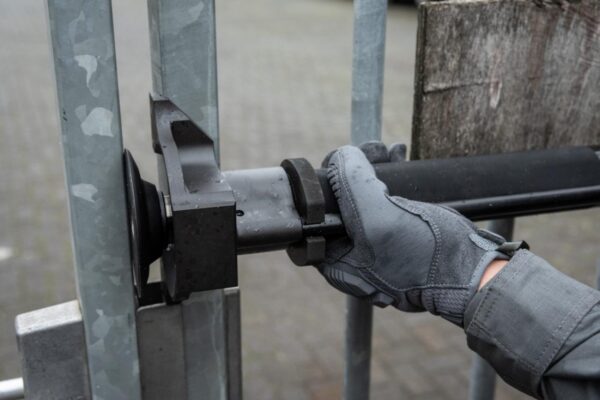

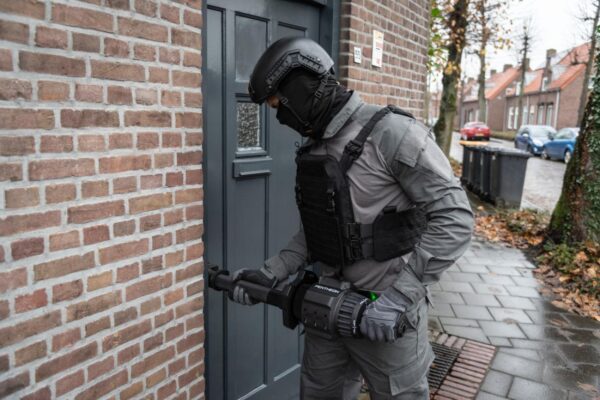

Battery-powered double-acting Pentheon door ram.
Designed for breaching inward opening doors with multiple locks. Also suitable for outward opening doors, when used in combination with a manual breaching tool.
Basic specifications
model
PDR200
max. working pressure
720 / 72 (bar/Mpa)
10443 psi
battery included
yes
connectivity, mobile app
Bluetooth
Performance
spreading force over full stroke
71 / 7.2 (kN/t)
15961 lbf
spreading stroke
300 mm
11.8 in
retracted length
802 mm
31.6 in
extended length
1102 mm
43.4 in
protection rate
IP57
directives
2006/42/EC, 2014/30/EU
Dimensions, weight and temperature
weight (excl. battery)
12.6 kg
27.8 lb
dimensions (AxBxC)
180 x 802 x 196 mm
7.1 x 31.6 x 7.7 in
weight, ready for use (incl. battery)
14.2 kg
31.3 lb
The package contains:
1x Door Ram PDR200
1x Battery Charger PBCH3
2x Batteries
