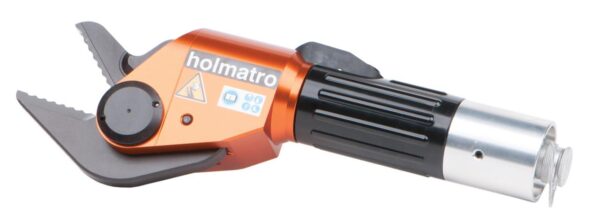

Cutter CU 4007 C

€1,204,336.00

Category:
Basic specifications
model CU 4007 C
equipped with (connector type) CORE
max. working pressure 720 / 72 (bar/Mpa) 10443 psi
Performance
max. cutting opening 59 mm 2.3 in
theoretical cutting force 220 / 22.4 (kN/t) 49458 lbf
General specifications
NCT no
Dimensions, weight and temperature
dimensions (AxBxC) 377 x 131 x 72 mm 14.8 x 5.2 x 2.8 in
weight (without hose) 3.8 kg 8.4 lb
weight, ready for use (hose connected) 5.3 kg 11.7 lb
Norms
EN 13204 classification AC59B-3.8
NFPA 1960, cutting capacity √
EN 13204, cutting capacity 1C 2C 3C
EN 13204 classification 2025 Ed. CU1-59B
Cutting performance
round bar (S235 acc. to EN 13204) 20 mm 0.8 in
